TPARTS Mud Flaps for Model 3 Highland Installation Guide

Note:

1.Installation Guide(Video)

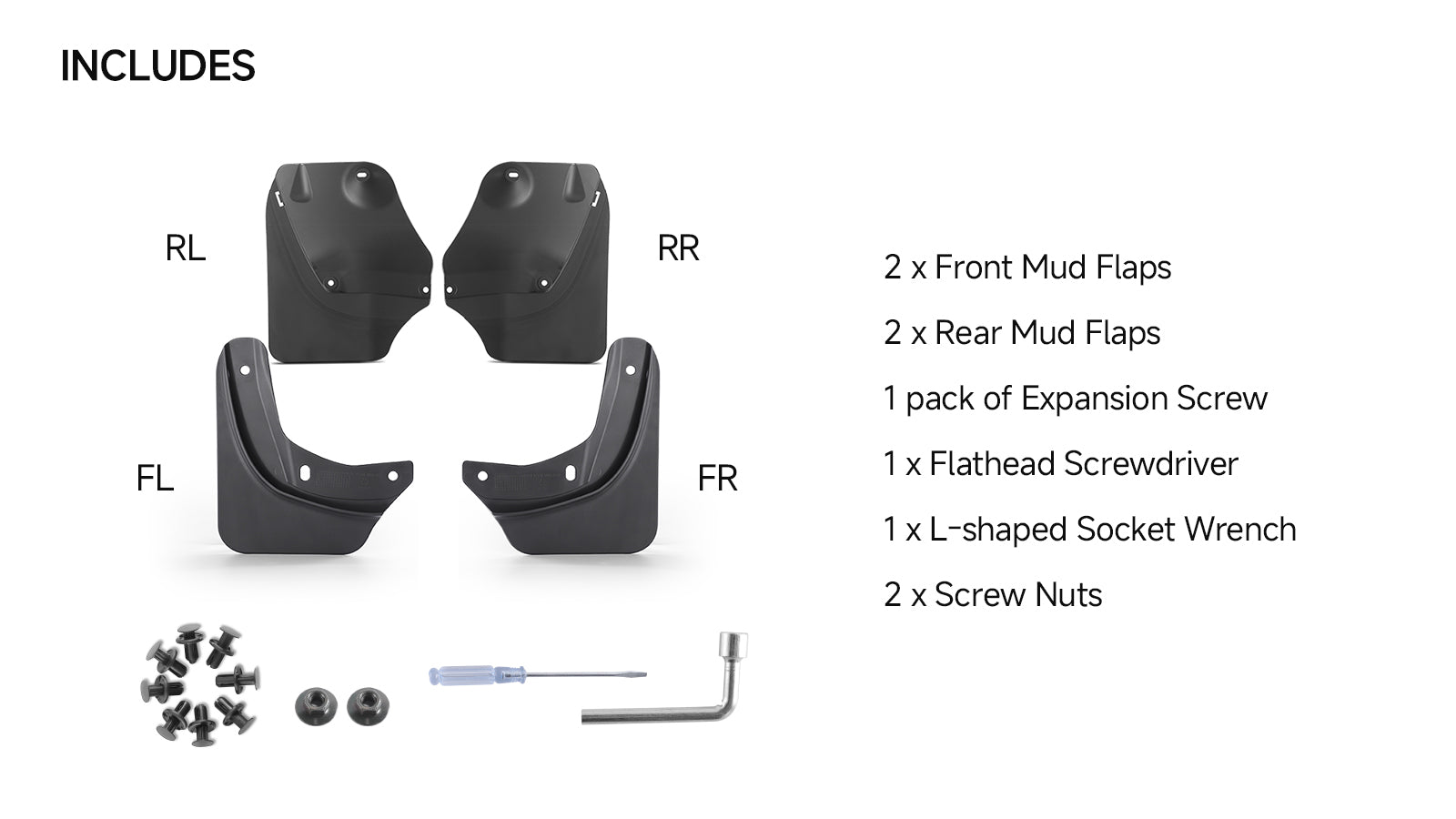

2.Package Includes

3.Front Mud Flaps Installation

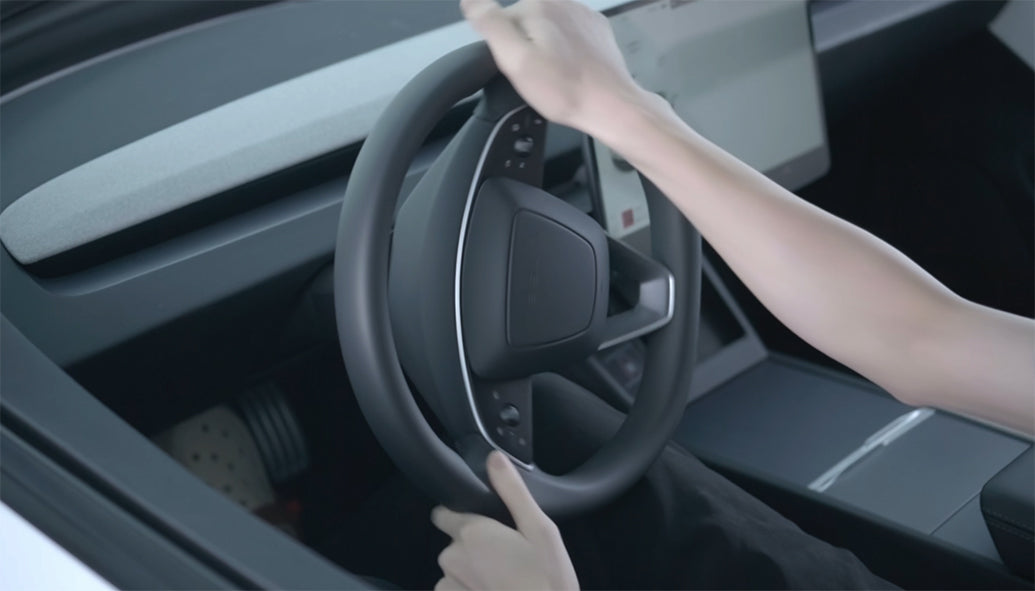

1. In the parked position, turn the steering wheel counterclockwise half a turn.

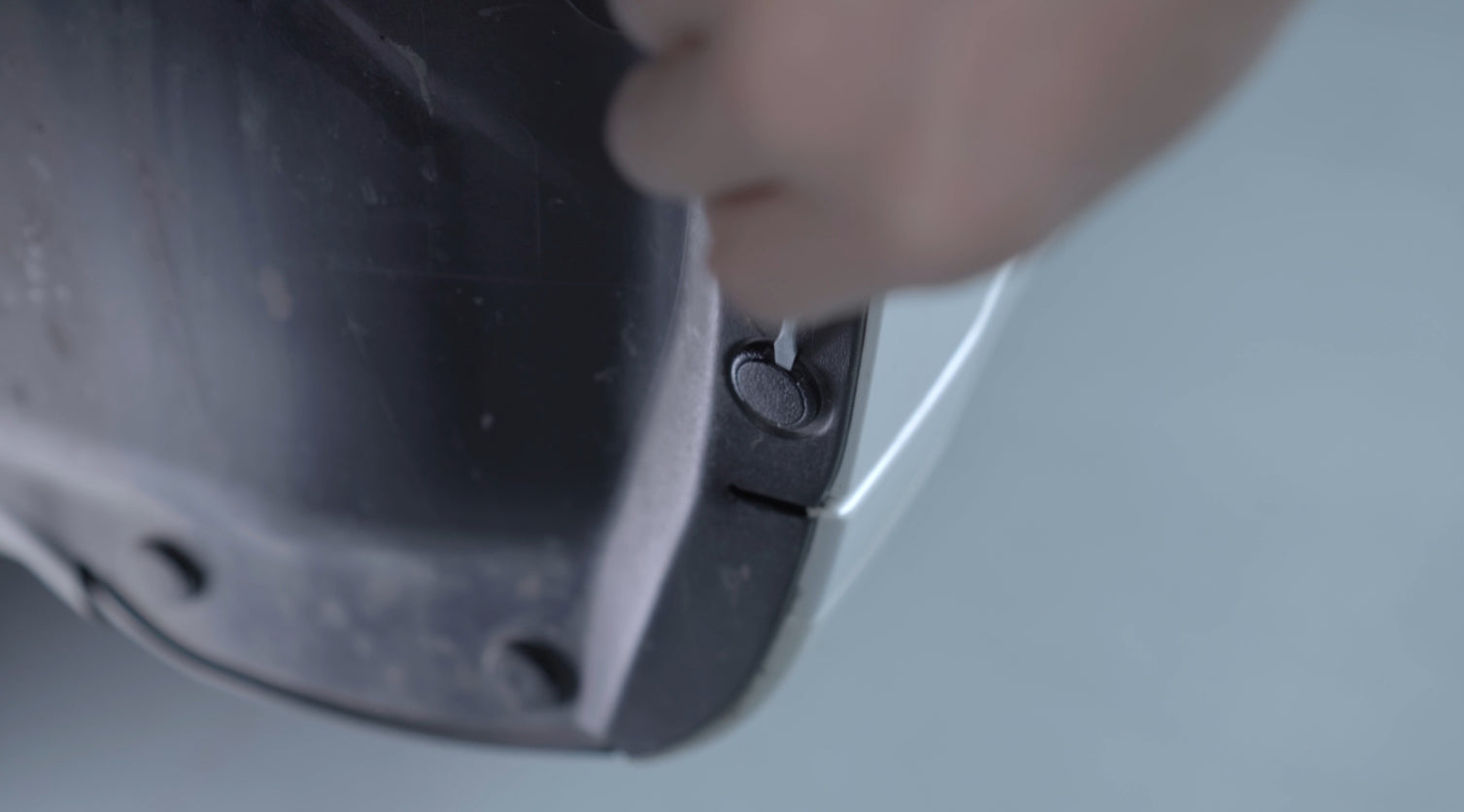

2. Clean the installation area and use the flathead screwdriverto pry
out the three original clips on the vehicle (operate with caution).

3. Find the front left mud flap by the "FL" indicator on the TPARTS
mud flap, and align it to the original vehicle clip positions.

4. Fasten the expansion screws provided in the package into the
original vehicle clip positions. The front left mud flap installation
is complete. Repeat steps 2-3 for the front right mud flap.

4.Rear mud flaps installation

1. Using the same method as the front mud flaps, remove t
hetwooriginalclipsfromthevehicle.

2. Align the screws and the original vehicle clip positions, and
install the rear mud flaps.

3.  Use the L-shaped socket wrench to secure the screw nuts to the original vehicle screw position.

4. Fasten the expansion screws into the remaining two clip
positions to complete the installation
