TPARTS Front Grille Mesh Radiator Cover Manual for Model Y Juniper

Package Includes

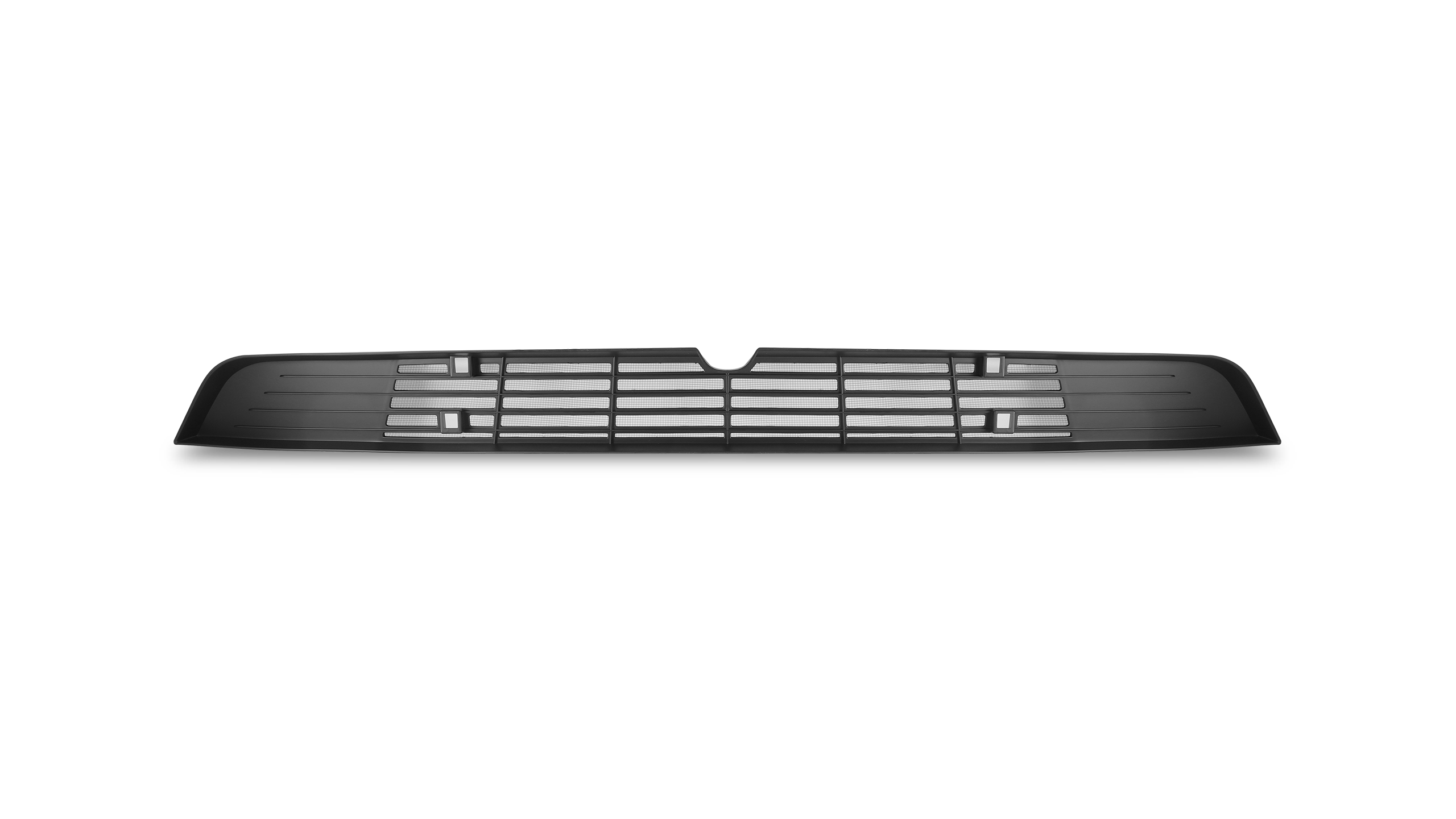

1 x Radiator Cover

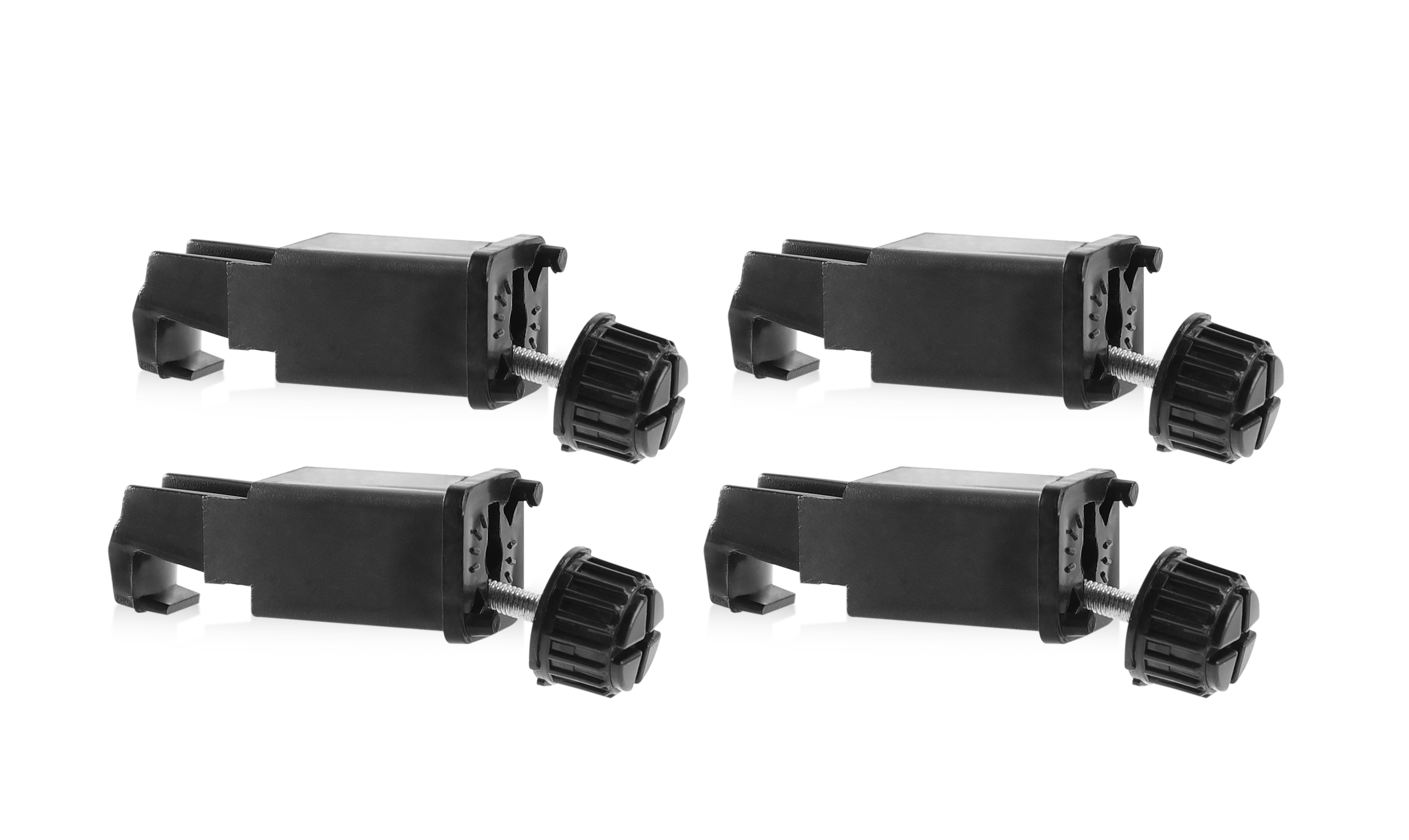

4 x Locking Clips

Installation Instructions

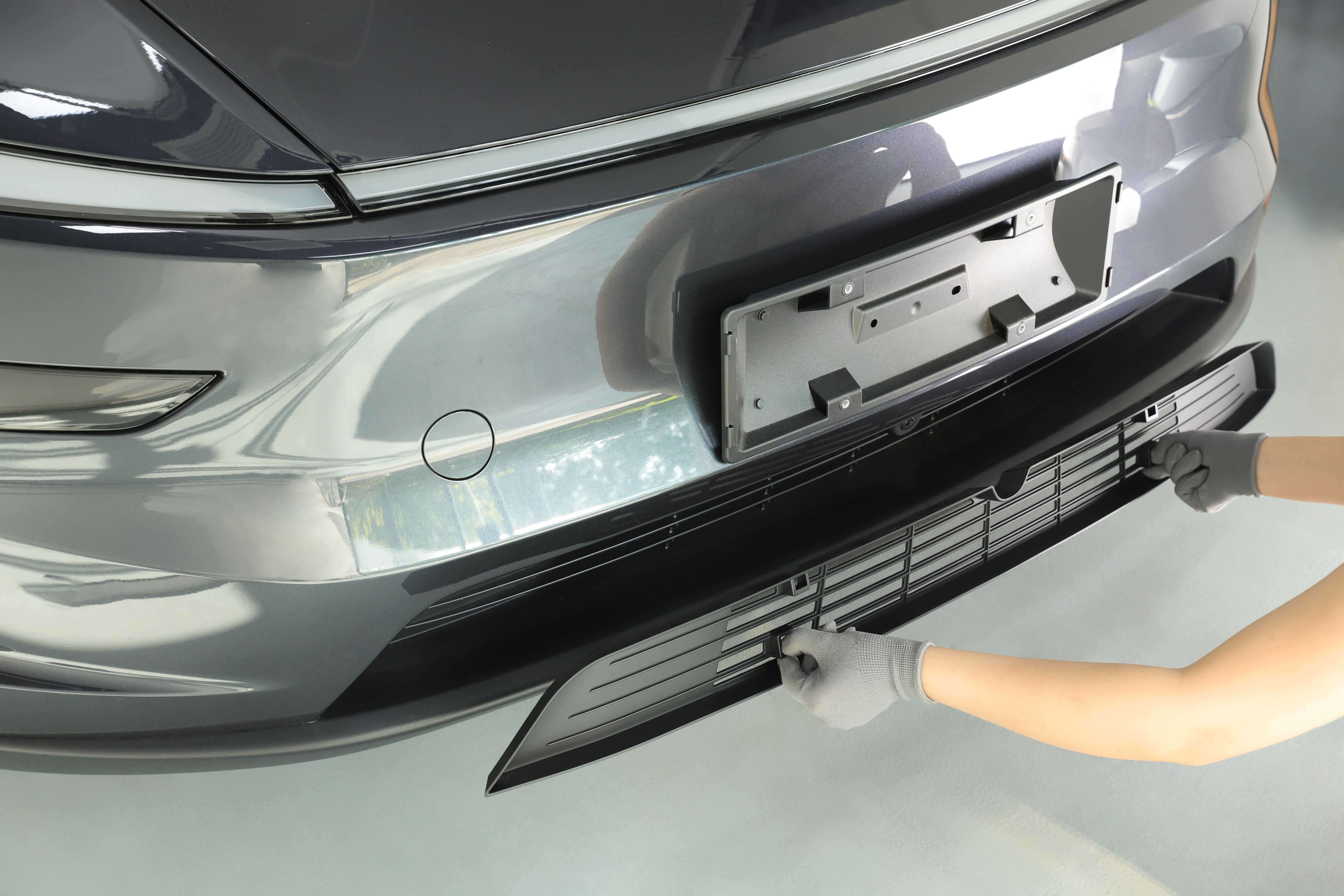

1. Position the Radiator Cover

Align it with the designated mounting area on the vehicle.

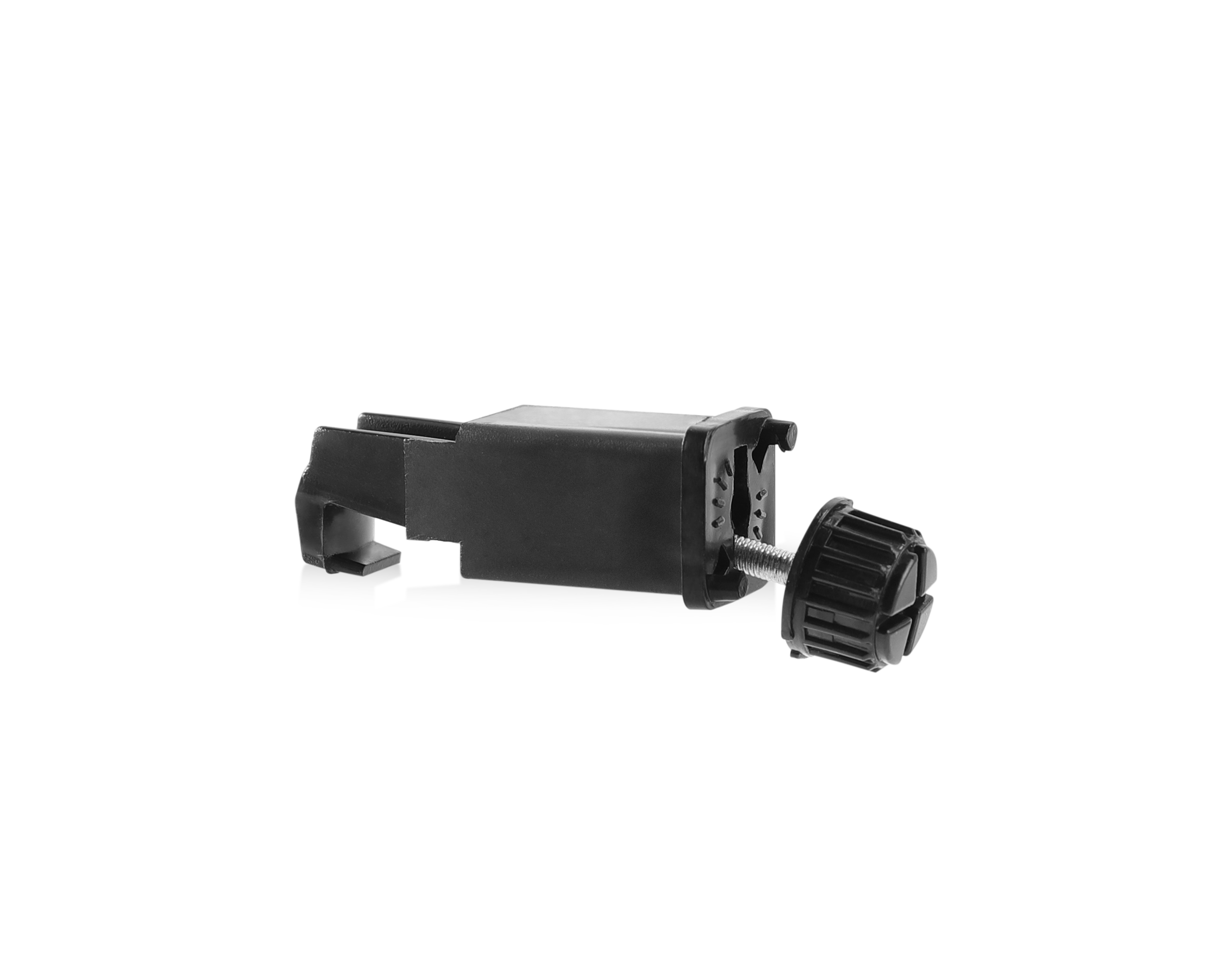

2. Prepare the Locking Clip - Hold the clip horizontally with the hook facing downward and the locking knob in the unlocked (downward) position.

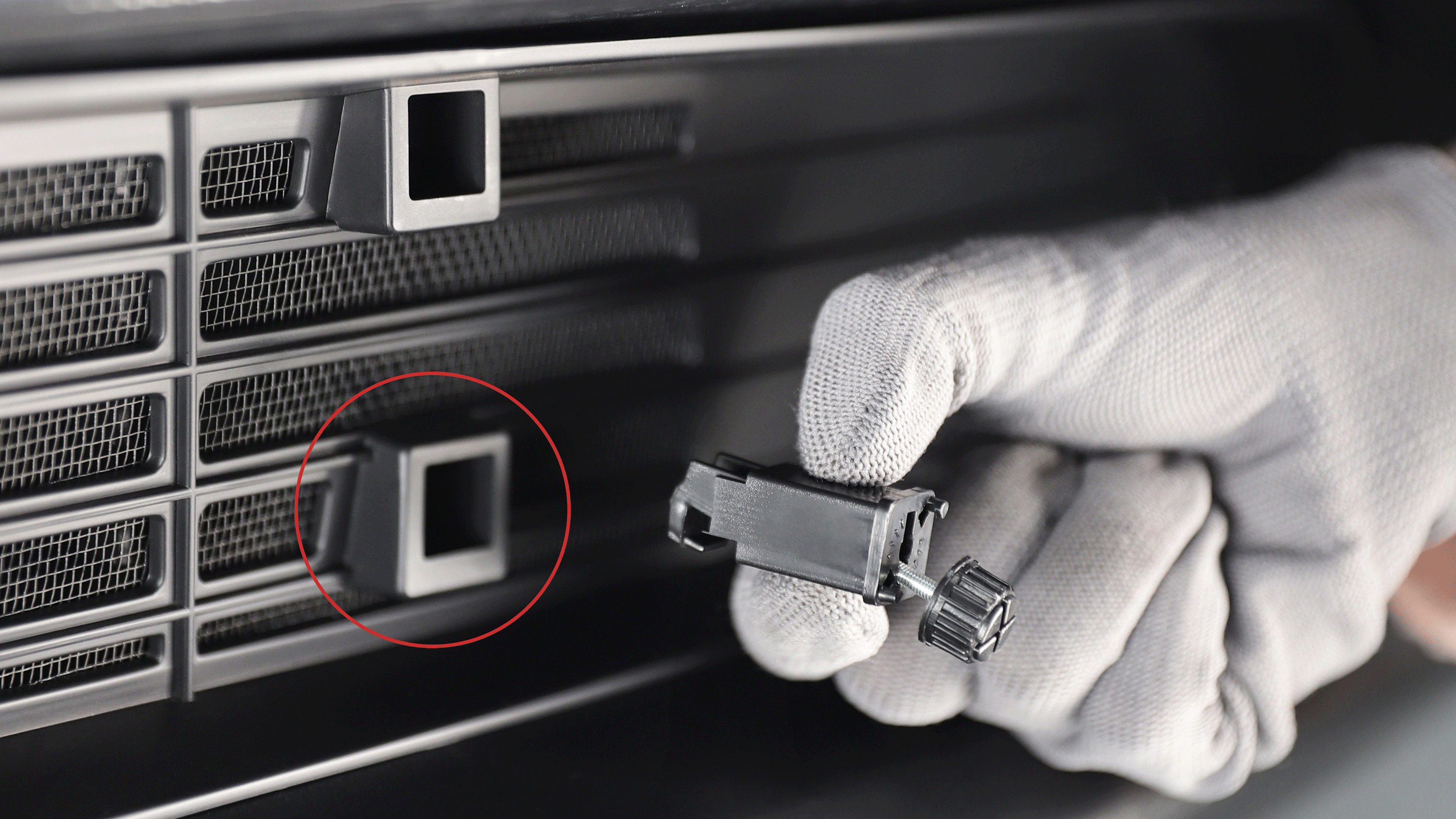

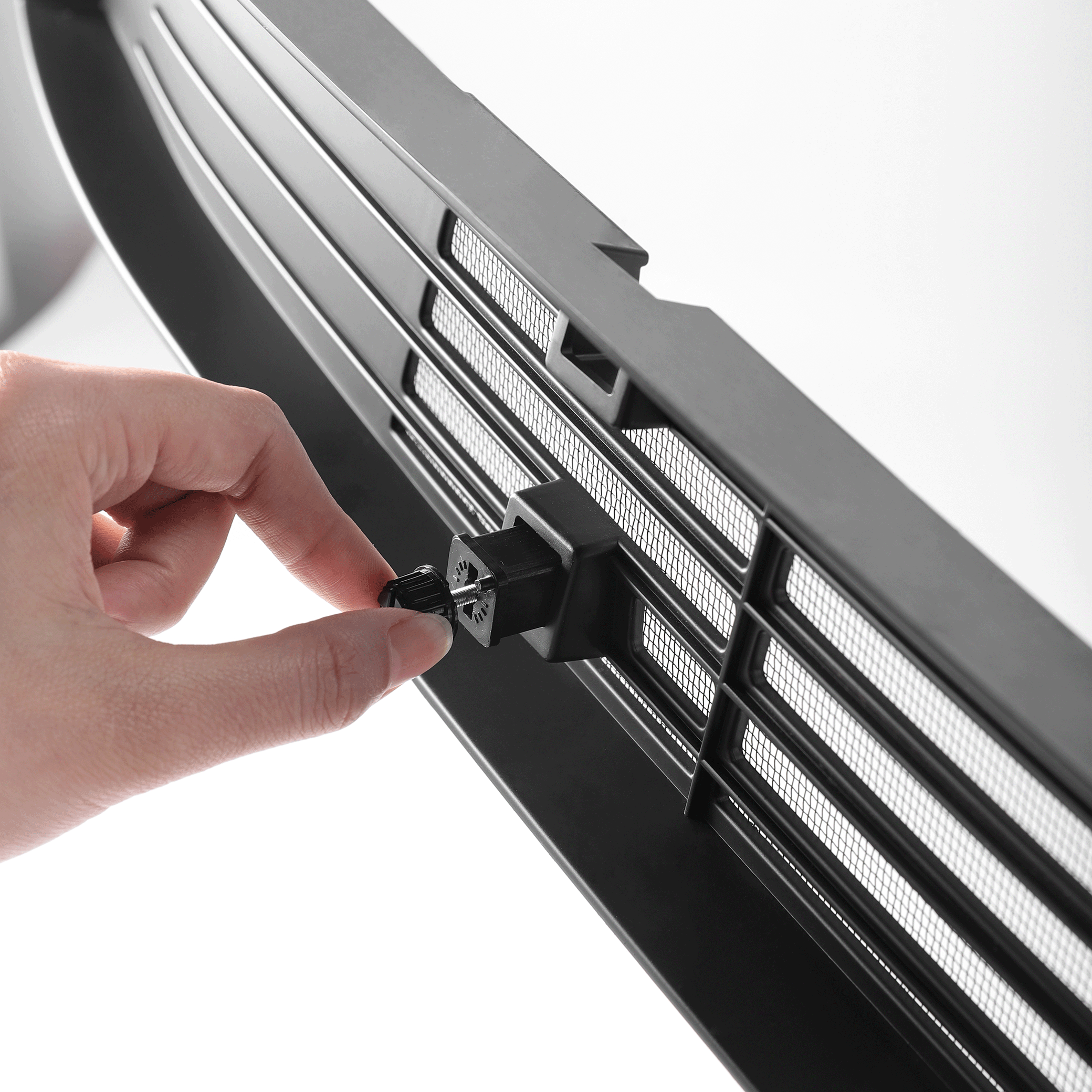

3. Insert the Locking Clip - Slide the clip into the square slot until it securely latches onto the radiator panel.

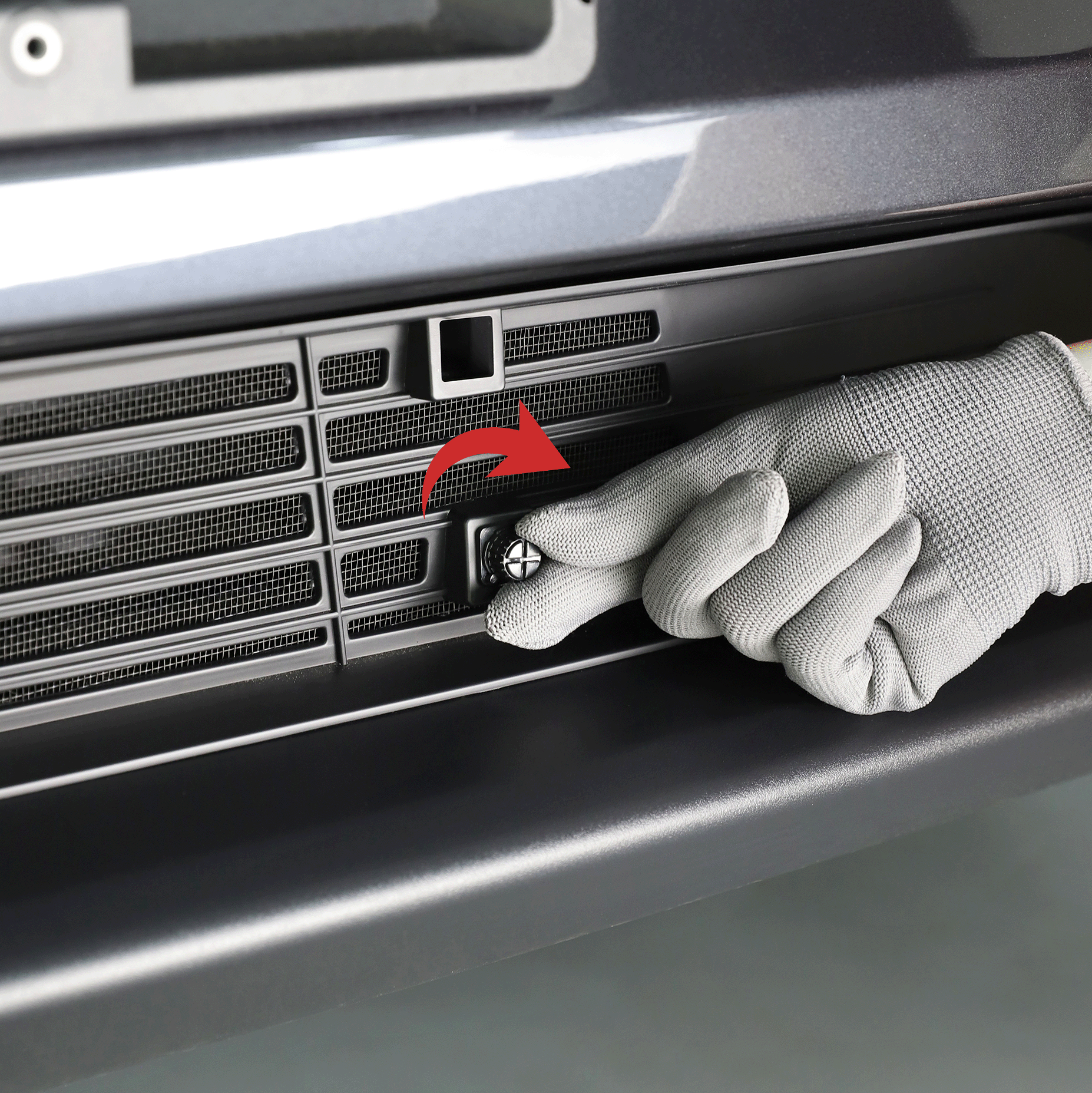

4. Secure the Clip - Switch the locking knob to the middle position, then twist it clockwise until fully tightened.

5. Install the Remaining Clips - Repeat the process for the remaining four clips. Ensure all clips are properly fastened and the radiator cover is securely in place.
