Tesla Heat Pump System: Principles, Innovations, and User Guide

MAY 15,2025,By lan

Share:

1. Introduction

Tesla, as a leader in the electric vehicle industry, is renowned for its continuous technological innovation. One of its most discussed features is the Tesla heat pump air conditioning system. This system is designed for high efficiency and energy savings, especially in cold climates, significantly improving battery performance and driving range.

2. What is a Heat Pump in Electric Vehicles?

A heat pump is essentially a "heat transporter". Unlike traditional PTC heaters that generate heat by consuming electricity directly, a heat pump uses the phase change of refrigerant to move heat from the outside air into the cabin.

- In summer, the system expels heat from the cabin to the outside.

- In winter, it extracts heat from the environment—even from the battery and motor—and delivers it inside.

This process is much more energy-efficient than direct electric heating, especially in moderate cold conditions.

3. Key Advantages of Tesla's Heat Pump System

AspectHeat PumpPTC Heater
PrincipleHeat transfer (energy-saving)Direct electric heating (energy-consuming)
Power Consumption~1/3 of PTCHigh, reduces range by ~30%
Heating SpeedSlower (needs time to warm up)Instant
Temperature Range-30°C to 30°C (less efficient below -10°C)All temperatures, but high energy use in extreme cold
CostHigher hardware cost, lower long-term energy costLower hardware cost, higher energy cost

Key Point: Tesla's heat pump is much more energy-efficient than traditional PTC heaters, especially in cold weather.

4. Core Innovations: Octovalve and Supermanifold

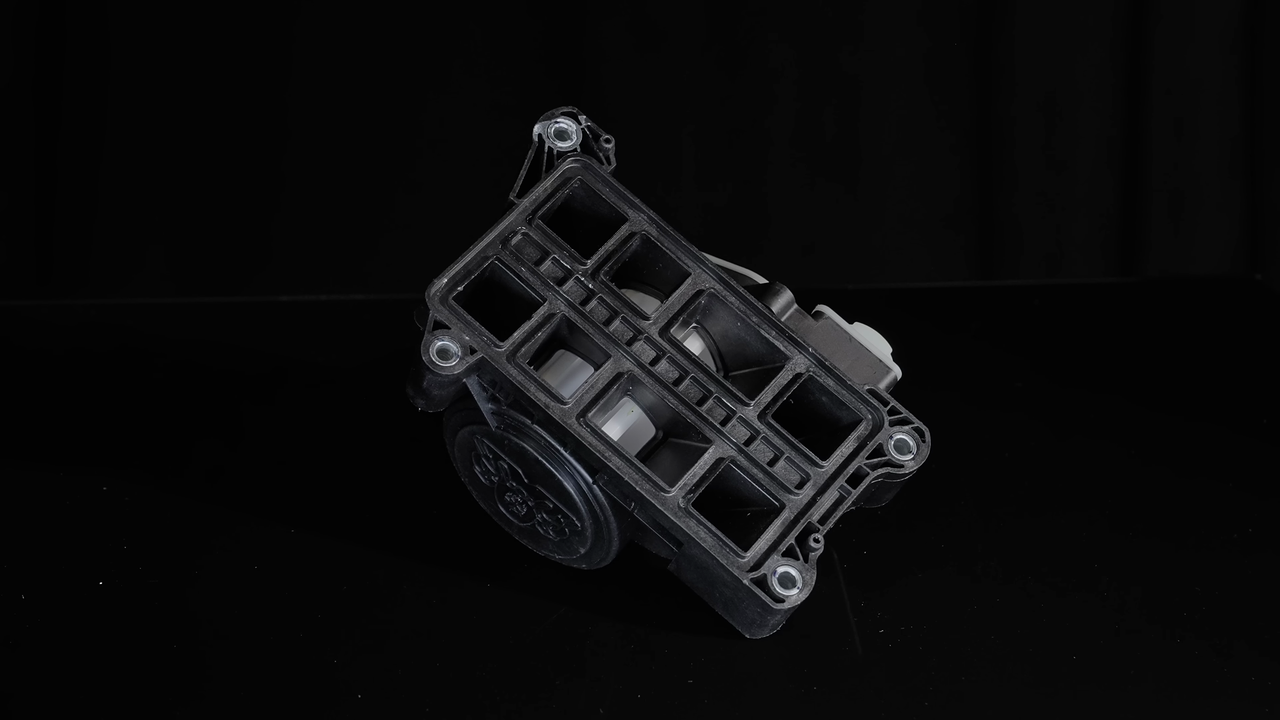

Octovalve (Eight-Way Valve):

- Tesla replaced the traditional four-way valve with the Octovalve, a core innovation in its heat management system.

- The Octovalve allows seamless switching between heating and cooling modes.

- It integrates the management of the battery, motor, and cabin heating/cooling.

- The system can operate in 12 heating modes and 3 cooling modes, improving efficiency by 10% over previous systems.

Supermanifold:

- The Supermanifold is a highly integrated component that combines many parts of the heat pump system into a single module.

- It uses a dual-layer PCB to manage both refrigerant and coolant flows.

- This design reduces the number of components from 15-20 to just a few, making the system more compact and efficient.

Key Point: These innovations allow Tesla to dynamically switch between different heat sources and sinks, optimizing energy use in all conditions.

5. Waste Heat Recovery in Tesla

Tesla's system uses smart algorithms and hardware integration to maximize waste heat utilization:

- During charging: Uses grid power to preheat the battery, saving battery energy.

- While driving: Recovers waste heat from the motor and battery for cabin heating or battery warming.

- In extreme cold: Uses motor stall to generate heat, quickly raising battery temperature for optimal charging.

Key Point: Full-vehicle waste heat recovery significantly improves energy efficiency and winter driving range.

6. Limitations and Practical Tips

Limitations:

- Reduced efficiency below -10°C: Heating becomes slower and less effective.

- Higher repair costs: Heat pump repairs can cost 1.5x more than PTC systems.

- Software dependency: Heat distribution relies on software; bugs may affect heating priorities.

Practical Tips:

- Preconditioning: Use the Tesla app to schedule departure times. The system will preheat the cabin and battery using grid power during charging.

- Driving mode adjustment: Lower acceleration mode to allow more heat transfer from the battery to the cabin, improving heating efficiency.

- Maintenance: Clean air intake filters before winter. If you hear a hissing sound during heating, have the heat pump checked at a service center.
